1.Equipment usage

The device is suitable for the detection and operation of the opening and closing movements of electric doors of trams and subway vehicles.

2.Main features

1) The use of industrial computer for data acquisition, analysis, processing, display, storage, LCD display test data and draw graphics. The detected data can automatically generate report archives, which can be tested multiple times and compare results.

2) The operating interface of the test system is prompted by Chinese and English (optional), human-computer friendly interface, easy to learn, easy to use, and comprehensive functions.

3)Door status simulation display.

4)Maximum extrusion pressure graphic display at the front door.

5)After the operator sets the number, time, test items and other parameters of the test, the microcomputer system can finish the test process automatically and effectively.

6）The collected data can be compared with standard data, analyzed and recorded to generate reports.

7）Automatic fault detection and recording.

3.Main technical parameters

Input power：AC. 220V 50Hz 5 A

Output power；DC24V

Force range 30 N～500 N

Force measurement accuracy 1.0 N
Timing range 0～20 S
Opening/closing door time detection
Door open time：0～3 (±0.5) seconds Error <0.2%
Door close time：0～3 (±0.5) seconds Error <0.2%
Timing accuracy 0.1 S
Obstacle test bar dimensions 30×60 mm
Door closing force＜200N
Door opening force＜250N

Obstacle detection pressure less than 150N
Test platform size 3260×1660×2660 mm
Control cabinet 1250×1300×950 mm
Test bench weight 800 kg
Computer system configuration: Hard disk capacity: 500G; Memory: 2G; Processor: Intel dual-core; LCD screen: 19 inches.

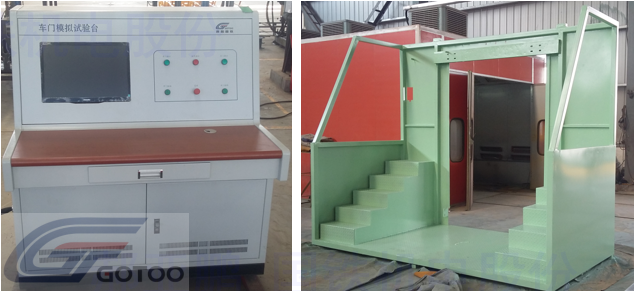

4.Equipment pictures

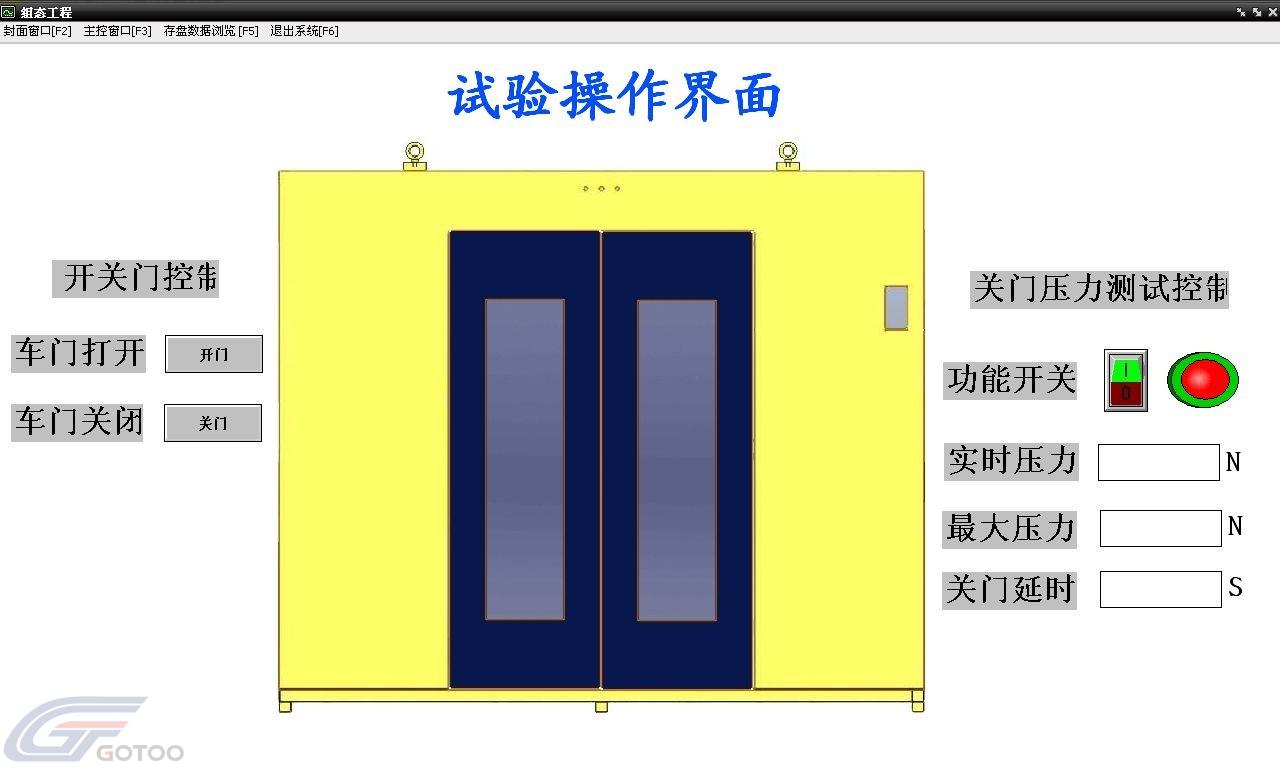

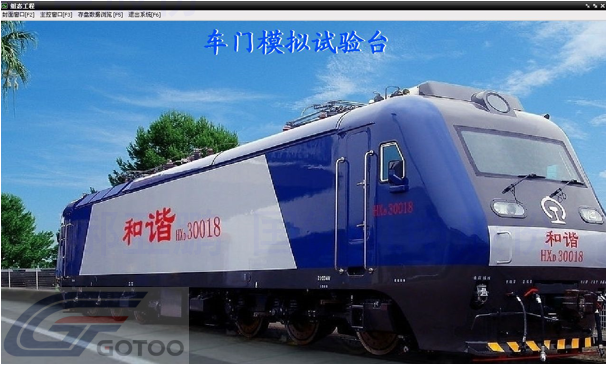

5. Software interface
