Air spring test bench
1. Equipment use
The air spring test bench is used for the pressure test and sealing test of the air spring of the subway vehicle.
2. Main functions
1) The air spring can be tested for air tightness and pressure holding test.
2) It has perfect protection function to ensure trouble-free and safe operation.
3) The tested air spring is easy to install, the test data is accurate and reliable, and the digital display.
3. Main structural composition
The equipment is mainly composed of a body, a pneumatic system, a detecting device and an electrical control system.
4. The main technical parameter
|
1 |
Working ability |
≥ 2 sets/hour |
|
2 |
Test spring working height |
135mm～250mm |
|
3 |
Test spring outer diameter |
φ500mm～φ800mm |
|
4 |
Equipment dimensions |
About 1150*520*2200mm |

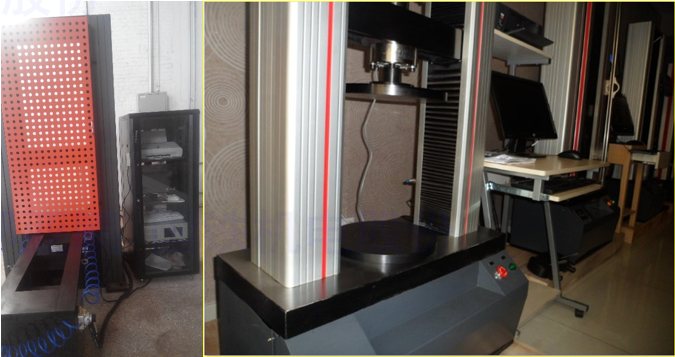

5. Equipment photo
6. Device software interface
Air tightness test interface
Spring force measurement deformation or height
Deformation force measurement
